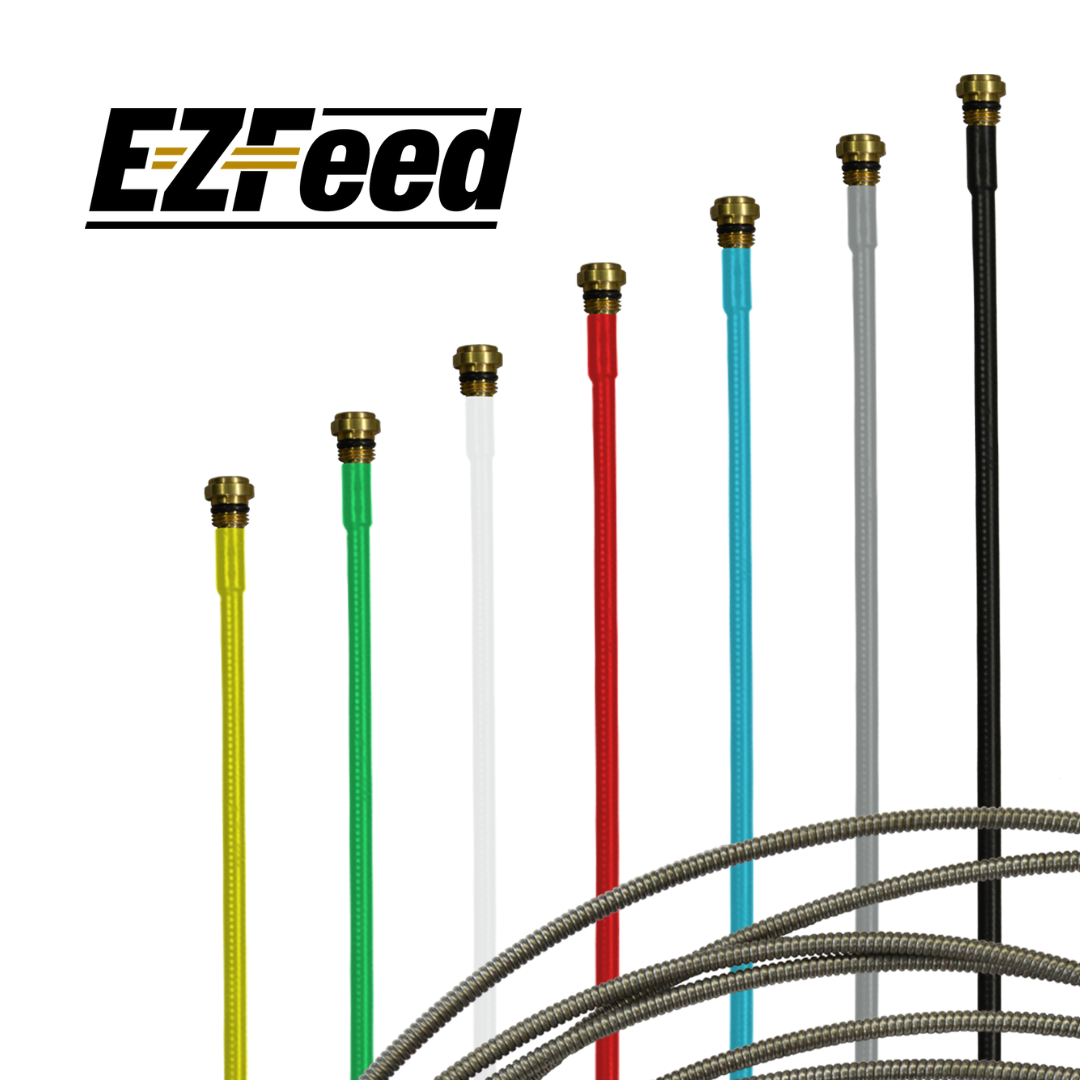

These liners feature a corrosion-resistant coating and a unique enhanced coil profile that reinforces rigidity and wire support. The result is smoother, more consistent wire feeding, even in the most challenging applications.
Whether you’re running aluminum, stainless steel, or metal-cored wire, E-Z Feed™ liners are built to handle it.
Tough Lives in Our Guns & Now, In Our Liners Too.
Now standard on all Bernard® MIG guns and optimized for aluminum, stainless, and metal-cored wire.
E-Z Feed Rear Load Liners now standard on Bernard® MIG guns. Please see the chart below for your new E-Z Feed Rear Load liner part numbers:
Part Number
Liner Color
Wire Size
Gun Length
Replaces Standard Rear Load Liner
LD3A-15 E-Z FEED™
White
0.035″-0.045″ (0.9-1.2 mm)
10′ – 15′ (3.05 m – 4.57 m)
L3A-15
LD3A-25 E-Z FEED™
White
0.035″-0.045″ (0.9-1.2 mm)
20′ – 25′ (6.09 m – 7.62 m)
LA3-25

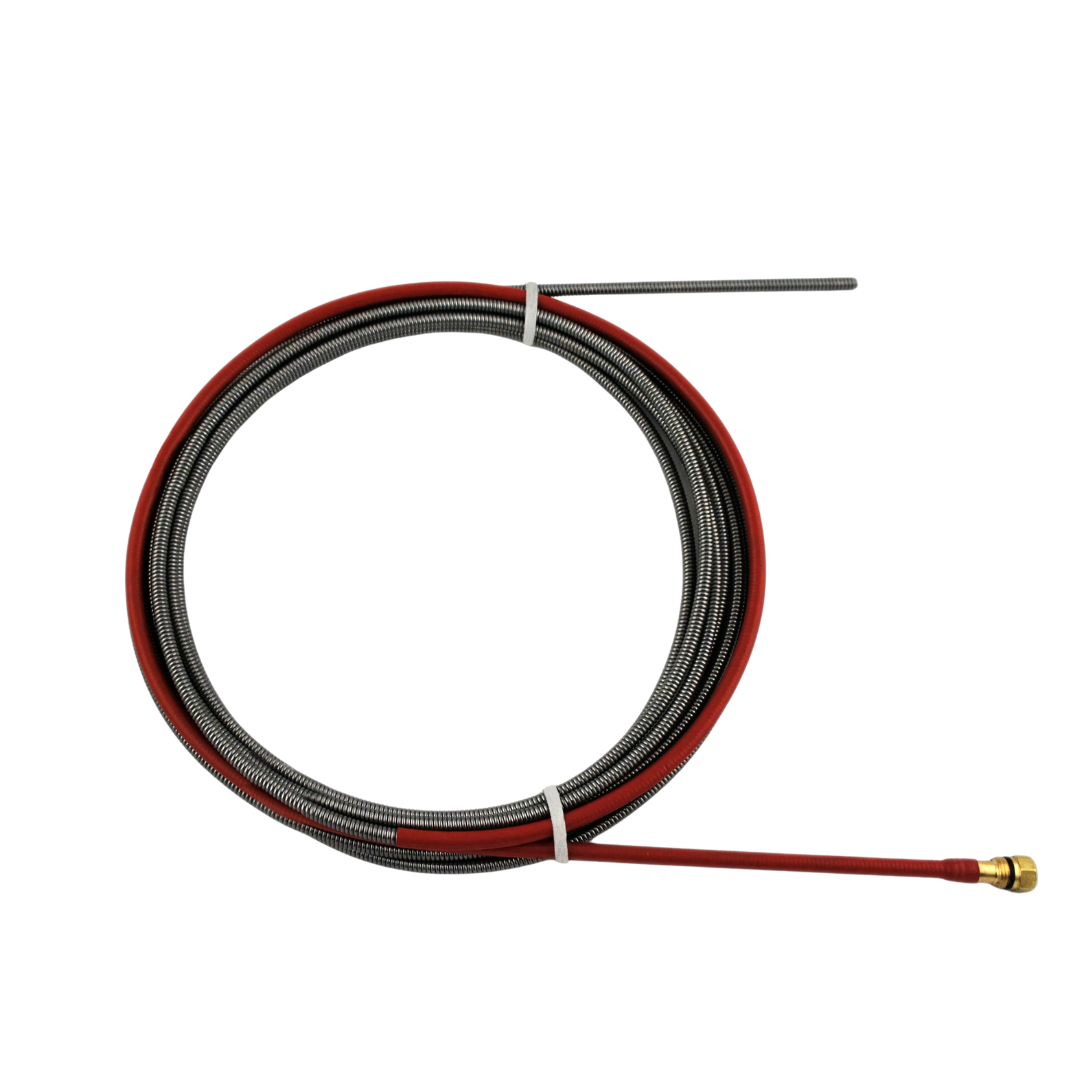

LD4A-15 E-Z FEED™
Red
0.045″-1/16″ (1.2-1.6 mm)
10′ – 15′ (3.05 m – 4.57 m)
L4A-15
LD4A-25 E-Z FEED™
Red
0.045″-1/16″ (1.2-1.6 mm)
20′ – 25′ (6.09 m – 7.62 m)
L4A-25
Our standard rear load liners are still available; however, our recommendation would be to utilize E-Z Feed Rear Load liners for maximum gun performance.
Effective September 29, 2025, all of the following Bernard MIG guns will come with E-Z Feed Rear Load liners standard for wire size 0.035′′ – 1/16′′ (0.9 mm – 1.6 mm):

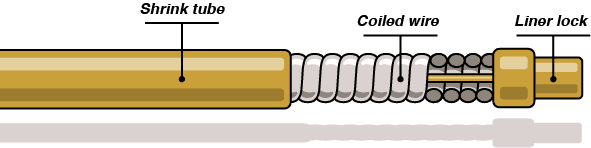

In addition to all of the benefits of E-Z Feed technology, these liners also provide a flawless wire -feed path as they are locked and concentrically aligned to both the contact tip and the power pin.
Match the color of the power pin cap washer and liner shrink wrap to prevent errors
The liner is locked and aligned at the front and back of the gun to provide a flawless wire feed path
Part Number
Liner Color
Wire Size
Gun Length
Use with AccuLock S Diffuser
LAD3A-10 E-Z FEED™
White
0.035″-0.045″ (0.9-1.2 mm)
10′ (3.05 m)
D-A1, D-A2 DS-A1, DS-A2
LAD3A-15 E-Z FEED™
15′ (4.57 m)
LAD3A-20 E-Z FEED™
20 ft (6.10 m)
LAD3A-25 E-Z FEED™
25 ft (7.62 m)
LAD4A-10 E-Z FEED™
Red
0.045″-1/16″ (1.2-1.6 mm)
10′ (3.05 m)
D-A1, D-A2 DS-A1, DS-A2
LAD4A-15 E-Z FEED™
15′ (4.57 m)
LAD4A-20 E-Z FEED™
20 ft (6.10 m)
LAD4A-25 E-Z FEED™
25 ft (7.62 m)
QUICK LOAD E-Z Feed Liner system loads from the front of the MIG torch, and requires less than half the time and effort for replacement when compared with Rear Load Liners. QUICK LOAD E-Z Feed liners come standard on Tregaskiss robotic MIG torches unless wire brake is a selected option. If a wire brake option is selected, torches will come with Rear Load Liners. Available for wire sizes between 0.035″ and 1/16″ and in lengths up to 6 feet (1.8 m) for robotic applications.
QUICK LOAD E-Z Feed Liners are standard in the following automation torches when configured with wire sizes 0.035′′-1/16′′ and using clutch mount:
The corrosion-resistant coating creates a slick surface that lowers drag on the wire, reducing birdnesting, stubbing, and downtime. Consistent wire delivery produces steadier arc performance and more predictable weld quality, even during long runs. Proven to handle challenging applications such as aluminum, stainless steel, and metal-cored wires.
2. Built Tough for Demanding Environments
The enhanced coil profile reinforces rigidity, preventing liner collapse, kinking, or deformation during use. This structural strength ensures stability in high-duty cycles. The liner is engineered to match the durability of Bernard MIG guns, providing rugged and reliable performance with a longer service life that reduces the frequency of liner changes.
3. Increased Productivity and Reduced Downtime
Smooth feeding eliminates common wire delivery issues, reducing the need for troubleshooting and adjustments. The rigidity and low-friction design extend the liner’s life, cutting down on maintenance and minimizing unplanned interruptions. Standard inclusion at no additional cost means operators gain optimized performance immediately with every Bernard MIG gun.
4. Optimized Across Wire Types and Applications
Versatile enough to handle aluminum, stainless steel, and metal-cored wires without compromise. Welders gain consistency and confidence across a wide range of job types and conditions. This versatility also simplifies inventory management by reducing the need for multiple liner variations.
5. Seamless Standardization
E-Z Feed liners are now the standard on Bernard MIG guns including BTB, S-Gun, PipeWorx, Clean Air, and W-Gun models. They are compatible with major consumable families such as AccuLock S and R, Centerfire, TOUGH LOCK, and Quik Tip. This provides consistency across product lines and simplifies training, stocking, and installation.
Key Differentiator: Built Tough to Feed Smooth
E-Z Feed liners combine reduced friction, reinforced rigidity, and broad compatibility in one solution. They not only feed smoother but last longer, reduce downtime, and are now included as the baseline standard with every Bernard MIG gun.
